1366-1

1366-1

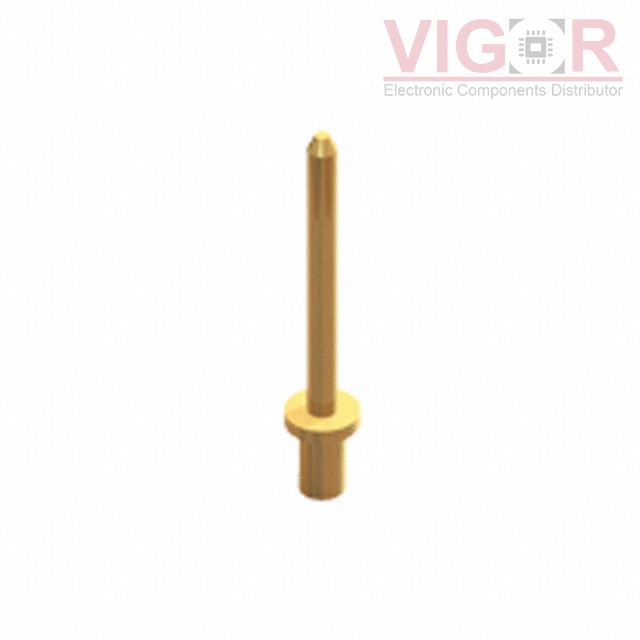

Image is for reference,
please contact us to get the real picture

Part No :

1366-1

Manufacturer
Keystone Electronics Corp.
Description
CONN PC PIN CIRC 0.020DIA GOLD
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
1366-1 PDF
Availability
29673300 pieces
Unit Price
$0.32000

Current price of 1366-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1366-1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.020" (0.51mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.215" (5.46mm)
Length - Below Flange:0.051" (1.30mm)
Length - Overall:0.276" (7.01mm)
Flange Diameter:0.050" (1.27mm)
Mounting Hole Diameter:0.035" (0.89mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.032" (0.81mm)
Contact Material:Brass
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
