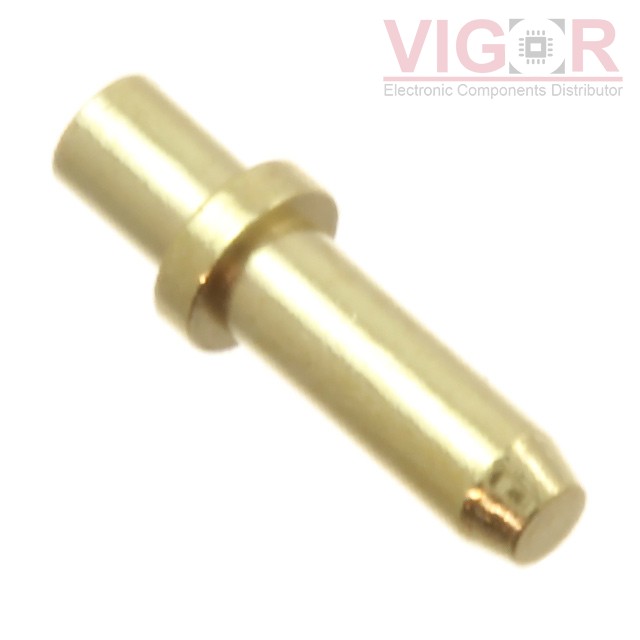

Current price of 3144-2-00-21-00-00-08-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | 3144 |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | PC Pin |
Terminal Style: | Single End |
Pin Size - Above Flange: | 0.062" (1.57mm) Dia |
Pin Size - Below Flange: | - |
Length - Above Flange: | 0.188" (4.78mm) |
Length - Below Flange: | 0.084" (2.13mm) |
Length - Overall: | 0.297" (7.54mm) |
Flange Diameter: | 0.094" (2.39mm) |
Mounting Hole Diameter: | 0.067" (1.70mm) |
Mounting Type: | Through Hole |
Termination: | Swage |
Insulation: | Non-Insulated |
Board Thickness: | 0.062" (1.57mm) |
Contact Material: | Brass Alloy |
Contact Finish: | Gold |
Contact Finish Thickness: | 20.0µin (0.51µm) |
