5920-0-00-15-00-00-03-0

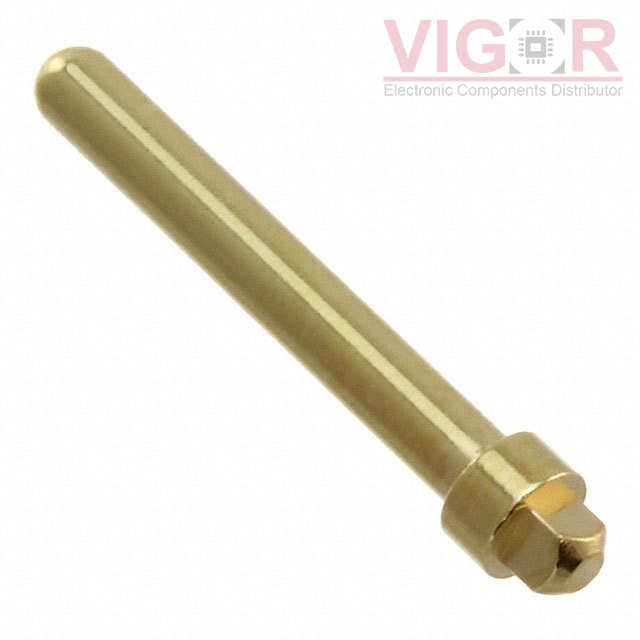

Image is for reference,
please contact us to get the real picture

Part No :: 5920-0-00-15-00-00-03-0

Manufacturer: Mill-Max

Description: CONN PC PIN 0.080DIA GOLD

Catalog: Terminals - PC Pin, Single Post Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: 5920-0-00-15-00-00-03-0 PDF

Availability: 2936 pieces

Unit Price: ~~$0.63000~~

Current price of 5920-0-00-15-00-00-03-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5920-0-00-15-00-00-03-0 Specifications

Type	Description
Series:	5920
Package:	Bulk
Part Status:	Active
Terminal Type:	PC Pin
Terminal Style:	Flanged
Pin Size - Above Flange:	0.080" (2.03mm) Dia
Pin Size - Below Flange:	0.085" (2.16mm) Dia
Length - Above Flange:	0.591" (15.01mm)
Length - Below Flange:	0.063" (1.60mm)
Length - Overall:	0.713" (18.10mm)
Flange Diameter:	0.118" (3.00mm)
Mounting Hole Diameter:	0.086" (2.18mm)
Mounting Type:	Through Hole
Termination:	Press-Fit
Insulation:	Non-Insulated
Board Thickness:	-
Contact Material:	Brass Alloy
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
