BAV3004W-7-F

BAV3004W-7-F

Image is for reference,
please contact us to get the real picture

Part No :

BAV3004W-7-F

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE GEN PURP 300V 225MA SOD123
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
BAV3004W-7-F PDF
Availability
0 pieces
Unit Price
$0.35000

Current price of BAV3004W-7-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAV3004W-7-F Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):300 V
Current - Average Rectified (Io):225mA (DC)
Voltage - Forward (Vf) (Max) @ If:1.25 V @ 200 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):50 ns
Current - Reverse Leakage @ Vr:100 nA @ 240 V
Capacitance @ Vr, F:5pF @ 0V, 1MHz
Mounting Type:Surface Mount
Package / Case:SOD-123
Supplier Device Package:SOD-123
Operating Temperature - Junction:-65°C ~ 150°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT S2A M4G

S2A M4G

DIODE GEN PURP 50V 2A DO214AA

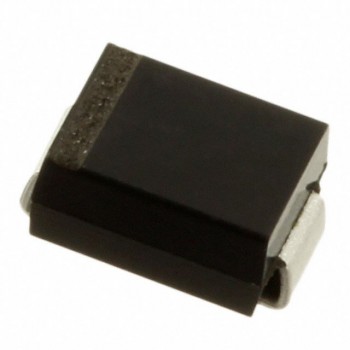

HOT CMSH3-20M BK PBFREE

CMSH3-20M BK PBFREE

DIODE SCHOTTKY 20V 3A SMB

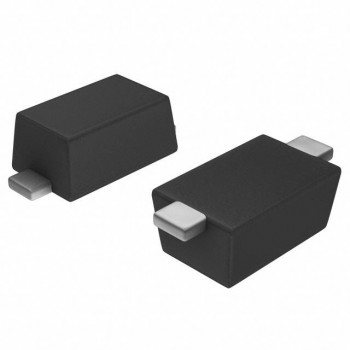

HOT S115FA
