BAT54-02V-G3-08

BAT54-02V-G3-08

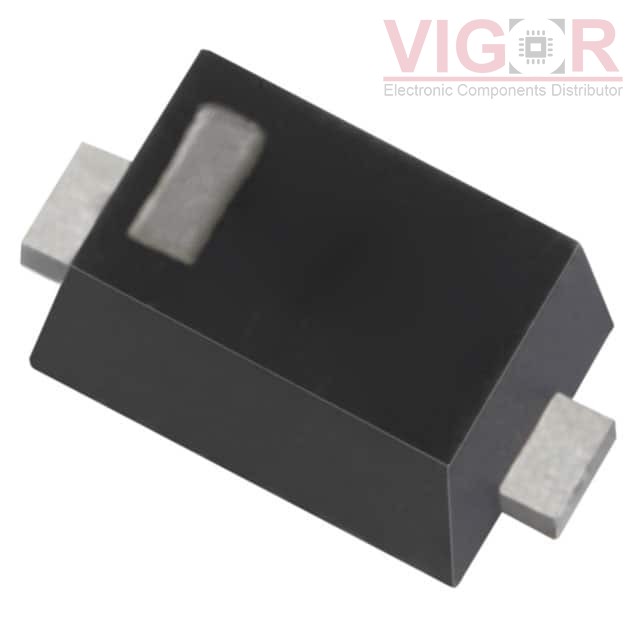

Image is for reference,
please contact us to get the real picture

Part No :

BAT54-02V-G3-08

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE SCHOTTKY 30V 200MA SOD523
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
BAT54-02V-G3-08 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of BAT54-02V-G3-08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAT54-02V-G3-08 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):30 V
Current - Average Rectified (Io):200mA (DC)
Voltage - Forward (Vf) (Max) @ If:800 mV @ 100 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:2 µA @ 25 V
Capacitance @ Vr, F:10pF @ 1V, 1MHz
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
Operating Temperature - Junction:125°C
