DMC566000R

DMC566000R

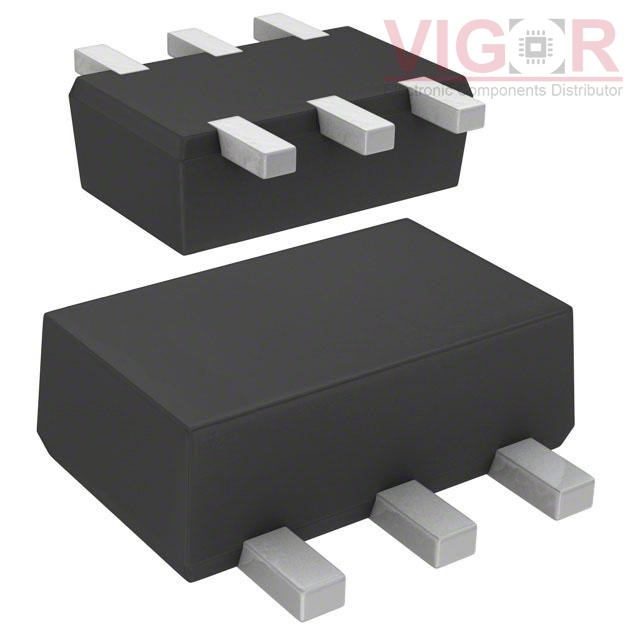

Image is for reference,
please contact us to get the real picture

Part No :

DMC566000R

Manufacturer
Panasonic
Description
TRANS PREBIAS DUAL NPN SMINI6
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
DMC566000R PDF
Availability
3000 pieces
Unit Price
$0.44000

Current price of DMC566000R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMC566000R Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Discontinued at Digi-Key
Transistor Type:2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):47kOhms
Resistor - Emitter Base (R2):-
DC Current Gain (hFE) (Min) @ Ic, Vce:160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 500µA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:-
Power - Max:150mW
Mounting Type:Surface Mount
Package / Case:6-SMD, Flat Leads
Supplier Device Package:SMini6-F3-B
