STL66DN3LLH5

STL66DN3LLH5

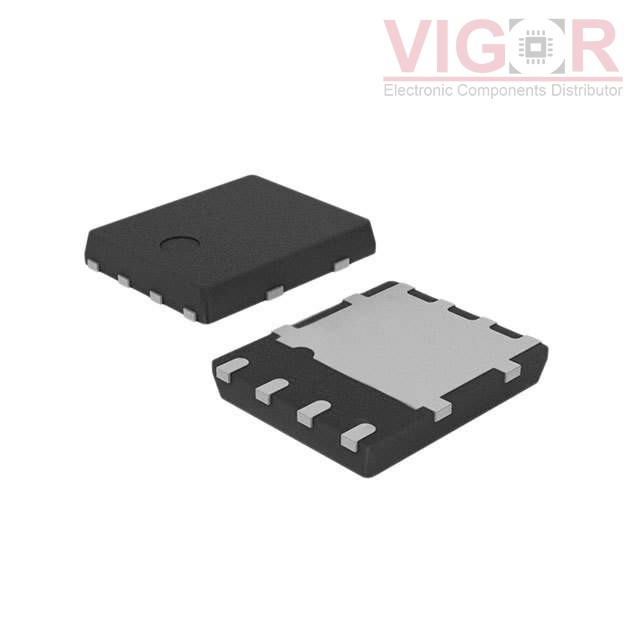

Image is for reference,
please contact us to get the real picture

Part No :

STL66DN3LLH5

Manufacturer
STMicroelectronics
Description
MOSFET 2N-CH 30V 78.5A PWRFLAT56
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
STL66DN3LLH5 PDF
Availability
105 pieces
Unit Price
$1.62000

Current price of STL66DN3LLH5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STL66DN3LLH5 Specifications
Type Description
Series:Automotive, AEC-Q101, STripFET™ V
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:78.5A
Rds On (Max) @ Id, Vgs:6.5mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1500pF @ 25V
Power - Max:72W
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerVDFN
Supplier Device Package:PowerFlat™ (5x6)
