IPA60R360P7XKSA1

IPA60R360P7XKSA1

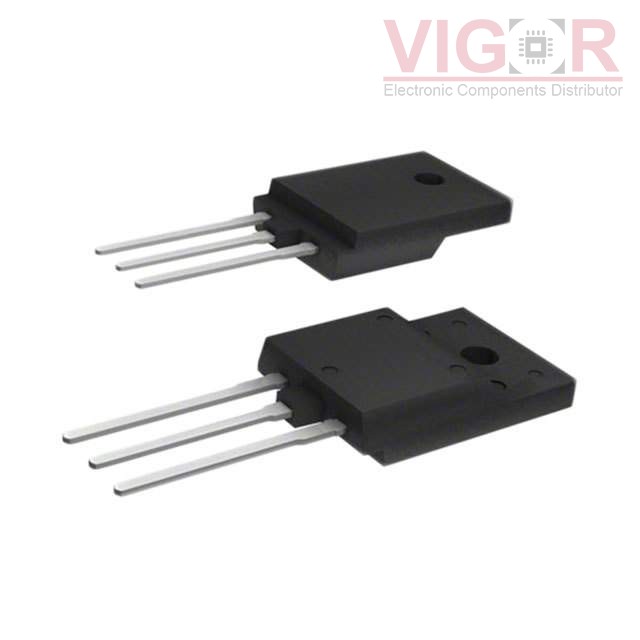

Image is for reference,
please contact us to get the real picture

Part No :

IPA60R360P7XKSA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CHANNEL 650V 9A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
IPA60R360P7XKSA1 PDF
Availability
13 pieces
Unit Price
$1.75000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of IPA60R360P7XKSA1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

IPA60R360P7XKSA1 Specifications
Type Description
Series:CoolMOS™ P7
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:9A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:360mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id:4V @ 140µA
Gate Charge (Qg) (Max) @ Vgs:13 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:555 pF @ 400 V
FET Feature:-
Power Dissipation (Max):22W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:PG-TO220 Full Pack
Package / Case:TO-220-3 Full Pack
