FDD86369

FDD86369

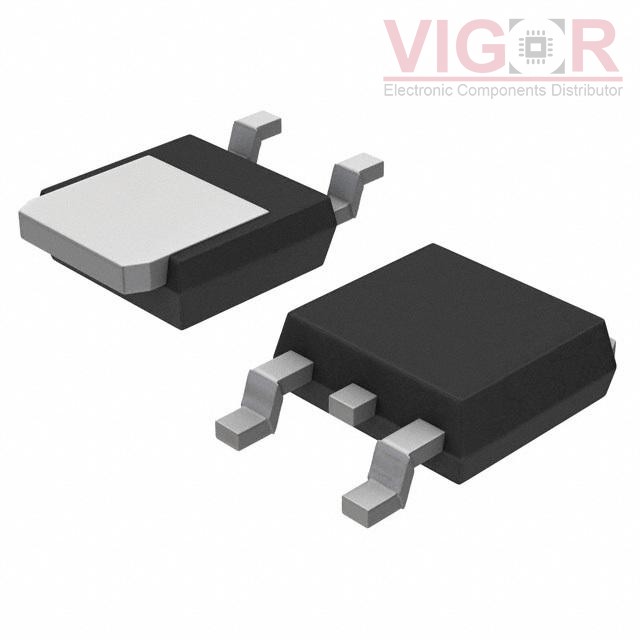

Image is for reference,
please contact us to get the real picture

Part No :

FDD86369

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 80V 90A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
FDD86369 PDF
Availability
4523 pieces
Unit Price
$1.77000

Current price of FDD86369 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FDD86369 Specifications
Type Description
Series:Automotive, AEC-Q101, PowerTrench®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:90A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:7.9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:54 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2530 pF @ 40 V
FET Feature:-
Power Dissipation (Max):150W (Tj)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D-PAK (TO-252)
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
