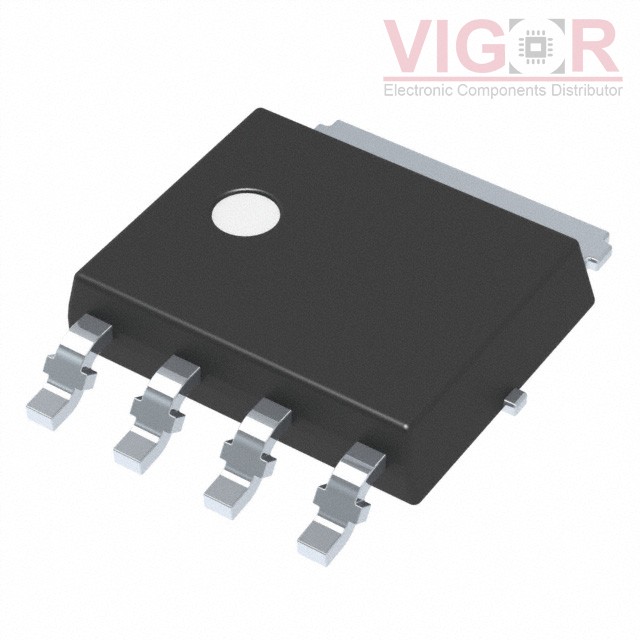

NVMYS2D4N04CTWG

NVMYS2D4N04CTWG

Image is for reference,
please contact us to get the real picture

Part No :

NVMYS2D4N04CTWG

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 40V 30A/138A LFPAK4
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
NVMYS2D4N04CTWG PDF
Availability
0 pieces
Unit Price
$0.52221

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of NVMYS2D4N04CTWG is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

NVMYS2D4N04CTWG Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:30A (Ta), 138A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:2.3mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:3.5V @ 90µA
Gate Charge (Qg) (Max) @ Vgs:32 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2100 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.9W (Ta), 83W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:LFPAK4 (5x6)
Package / Case:SOT-1023, 4-LFPAK
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT FQB3N60CTM

FQB3N60CTM

MOSFET N-CH 600V 3A D2PAK
HOT FQU1N60CTU

FQU1N60CTU

MOSFET N-CH 600V 1A IPAK

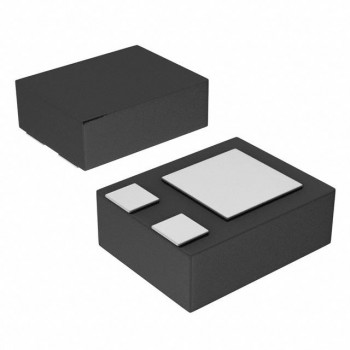

HOT DMN2300UFB4-7B
