GSID150A120S3B1

GSID150A120S3B1

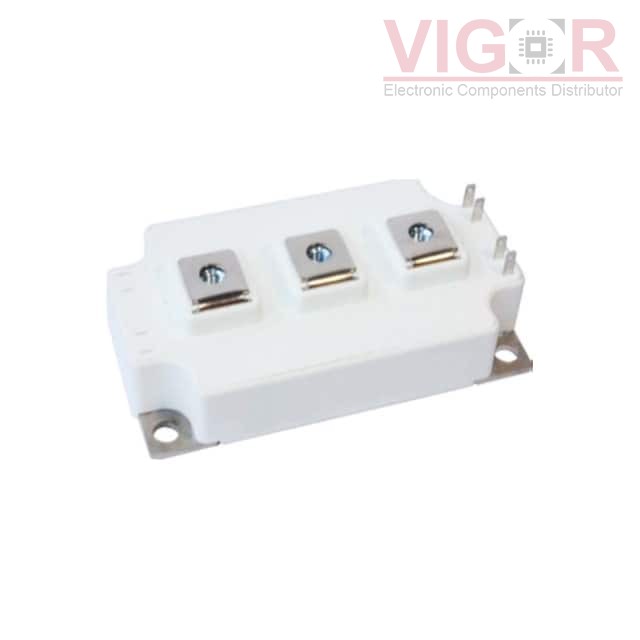

Image is for reference,
please contact us to get the real picture

Part No :

GSID150A120S3B1

Manufacturer
SemiQ
Description
IGBT MODULE 1200V 300A 940W D3
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
GSID150A120S3B1 PDF
Availability
0 pieces
Unit Price
$84.81125

Current price of GSID150A120S3B1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

GSID150A120S3B1 Specifications
Type Description
Series:Amp+™
Package:Bulk
Part Status:Active
IGBT Type:-
Configuration:2 Independent
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):300 A
Power - Max:940 W
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 150A
Current - Collector Cutoff (Max):1 mA
Input Capacitance (Cies) @ Vce:14 nF @ 25 V
Input:Standard
NTC Thermistor:No
Operating Temperature:-40°C ~ 150°C
Mounting Type:Chassis Mount
Package / Case:D-3 Module
Supplier Device Package:D3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
