FGL40N120ANDTU

FGL40N120ANDTU

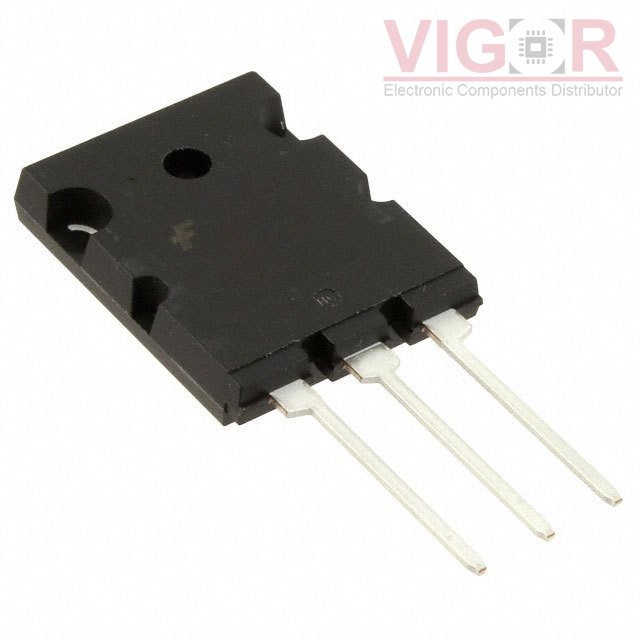

Image is for reference,
please contact us to get the real picture

Part No :

FGL40N120ANDTU

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IGBT NPT 1200V 64A TO264-3
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
FGL40N120ANDTU PDF
Availability
391 pieces
Unit Price
$7.16000

Current price of FGL40N120ANDTU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FGL40N120ANDTU Specifications
Type Description
Series:-
Package:Tube
Part Status:Not For New Designs
IGBT Type:NPT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):64 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:3.2V @ 15V, 40A
Power - Max:500 W
Switching Energy:2.3mJ (on), 1.1mJ (off)
Input Type:Standard
Gate Charge:220 nC
Td (on/off) @ 25°C:15ns/110ns
Test Condition:600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr):112 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264-3
