Current price of AOK60B65H1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | Alpha IGBT™ |
Package: | Tube |
Part Status: | Active |
IGBT Type: | - |
Voltage - Collector Emitter Breakdown (Max): | 650 V |
Current - Collector (Ic) (Max): | 120 A |
Current - Collector Pulsed (Icm): | 180 A |
Vce(on) (Max) @ Vge, Ic: | 2.35V @ 15V, 60A |
Power - Max: | 500 W |
Switching Energy: | 2.42mJ (on), 1.17mJ (off) |
Input Type: | Standard |
Gate Charge: | 90 nC |
Td (on/off) @ 25°C: | 39ns/153ns |
Test Condition: | 400V, 60A, 5Ohm, 15V |
Reverse Recovery Time (trr): | 288 ns |
Operating Temperature: | -55°C ~ 175°C (TJ) |
Mounting Type: | Through Hole |

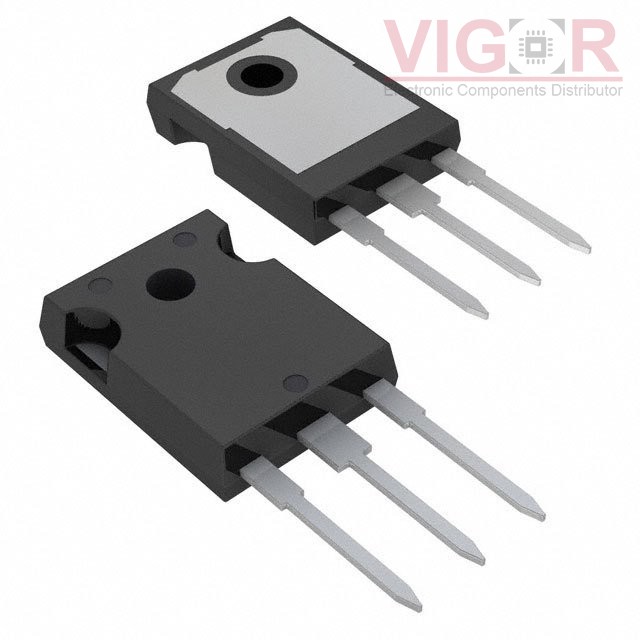

Package / Case: | TO-247-3 |
Supplier Device Package: | TO-247 |
