STGFW40V60DF

STGFW40V60DF

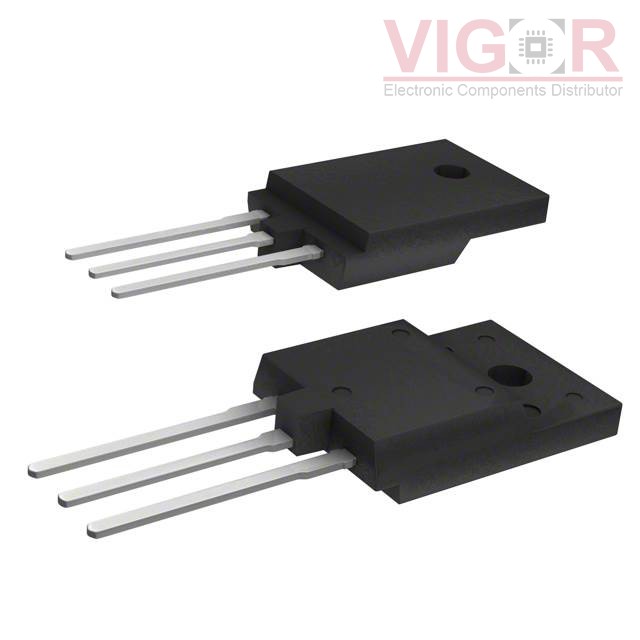

Image is for reference,
please contact us to get the real picture

Part No :

STGFW40V60DF

Manufacturer
STMicroelectronics
Description
IGBT 600V 80A 62.5W TO-3PF
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
STGFW40V60DF PDF
Availability
0 pieces
Unit Price
$2.88000

Current price of STGFW40V60DF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGFW40V60DF Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 40A
Power - Max:62.5 W
Switching Energy:456µJ (on), 411µJ (off)
Input Type:Standard
Gate Charge:226 nC
Td (on/off) @ 25°C:52ns/208ns
Test Condition:400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):41 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3PFM, SC-93-3
Supplier Device Package:TO-3PF-3
