Type | Description |
---|---|
Series: | OD8032 |
Package: | Bulk |
Part Status: | Active |
Voltage - Rated: | 48VDC |
Size / Dimension: | Square - 80.5mm L x 80.5mm H |
Width: | 32.00mm |
Air Flow: | 50.0 CFM (1.40m³/min) |
Static Pressure: | 0.430 in H2O (107.1 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | Locked Rotor Sensor |
Noise: | 40.0dB |
Power (Watts): | - |
RPM: | 3800 RPM |
Termination: | 3 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | -4 ~ 176°F (-20 ~ 80°C) |
Approval Agency: | cURus, TUV |
Weight: | - |
LED LT BAR 5X10MM 2CHIP RED DIFF

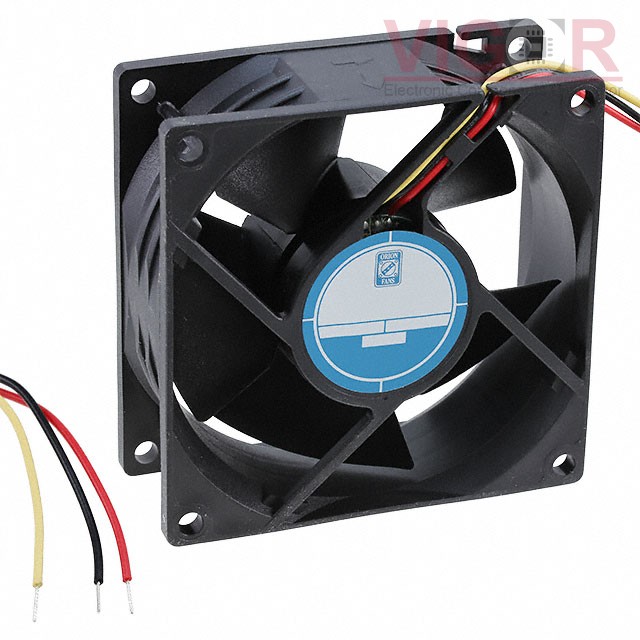

FAN AXIAL 80.5X32MM 48VDC WIRE
