Type | Description |
---|---|
Series: | CFM-40V |
Package: | Tray |
Part Status: | Active |
Voltage - Rated: | 12VDC |
Size / Dimension: | Square - 40mm L x 40mm H |
Width: | 10.00mm |
Air Flow: | 8.0 CFM (0.224m³/min) |
Static Pressure: | 0.190 in H2O (47.3 Pa) |
Bearing Type: | omniCOOL™ Magnetic Sleeve |
Fan Type: | Tubeaxial |
Features: | Auto Restart, Speed Sensor (Tach) |
Noise: | 27.3dB(A) |
Power (Watts): | 710 mW |
RPM: | 7000 RPM |
Termination: | 3 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency: | CE, cURus, TUV |
Weight: | 0.034 lb (15.42 g) |

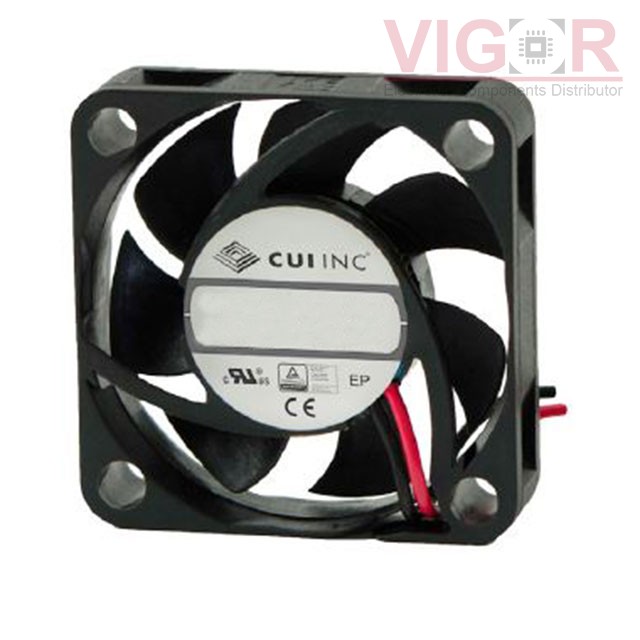

FAN AXIAL 40X10MM 12VDC WIRE
