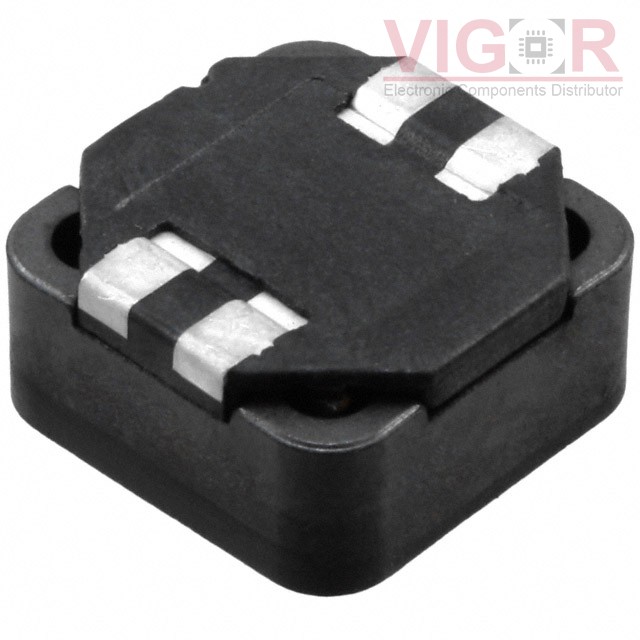

744282100

744282100

Image is for reference,
please contact us to get the real picture

Part No :

744282100

Manufacturer
Würth Elektronik Midcom
Description
CMC 10UH 2.25A 2LN 9 KOHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
744282100 PDF
Availability
457 pieces
Unit Price
$3.10000

Current price of 744282100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744282100 Specifications
Type Description
Series:WE-SCC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Power, Signal Line
Number of Lines:2
Impedance @ Frequency:9 kOhms @ 20 MHz
Inductance @ Frequency:10 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2.25A
DC Resistance (DCR) (Max):50mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.492" L x 0.492" W (12.50mm x 12.50mm)
Height (Max):0.256" (6.50mm)
Package / Case:Horizontal, 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 744821120

744821120

CMC 20MH 500MA 2LN TH
HOT DLP11SA670HL2L

DLP11SA670HL2L

CMC 150MA 2LN 67 OHM SMD

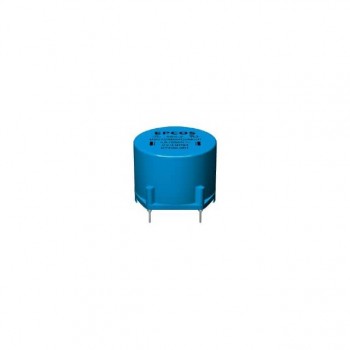

HOT B82724B2202N020
