CTX8-2P-R

CTX8-2P-R

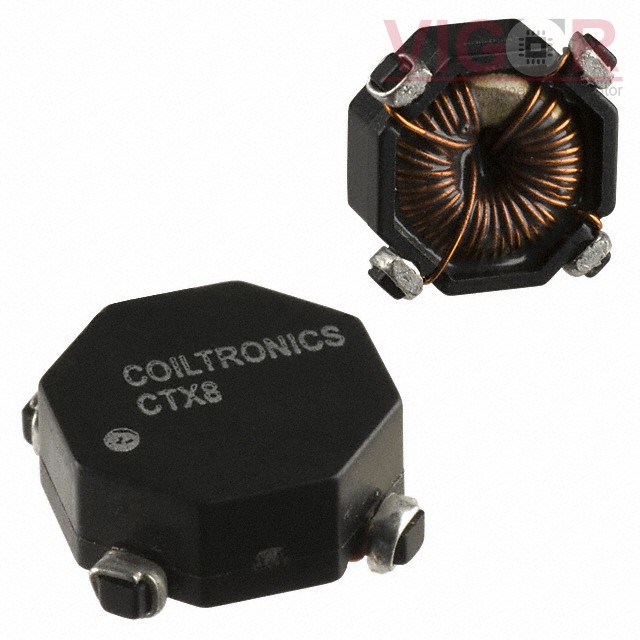

Image is for reference,
please contact us to get the real picture

Part No :

CTX8-2P-R

Manufacturer
PowerStor (Eaton)
Description
INDUCT ARRAY 2 COIL 7.65UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
CTX8-2P-R PDF
Availability
0 pieces
Unit Price
$1.64300

Current price of CTX8-2P-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CTX8-2P-R Specifications
Type Description
Series:Econo-Pac™
Package:Tape & Reel (TR)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:7.65 µH
Inductance - Connected In Series:30.6 µH
Tolerance:±20%
Current Rating - Parallel:2.3 A
Current Rating - Series:1.15 A
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:40mOhm Max
DC Resistance (DCR) - Series:158mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.450" L x 0.450" W (11.43mm x 11.43mm)
Height:0.235" (5.97mm)
