PM3602-5-RC

PM3602-5-RC

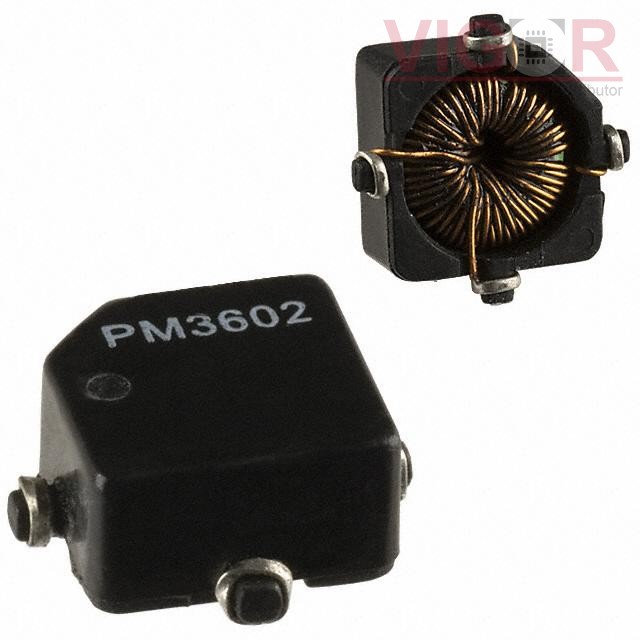

Image is for reference,
please contact us to get the real picture

Part No :

PM3602-5-RC

Manufacturer
J.W. Miller / Bourns
Description
INDUCT ARRAY 2 COIL 5UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
PM3602-5-RC PDF
Availability
1646 pieces
Unit Price
$1.92000

Current price of PM3602-5-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PM3602-5-RC Specifications
Type Description
Series:PM3600
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:5 µH
Inductance - Connected In Series:20 µH
Tolerance:±20%
Current Rating - Parallel:2.41 A
Current Rating - Series:1.2 A
Current Saturation - Parallel:-
Current Saturation - Series:-
DC Resistance (DCR) - Parallel:23mOhm Max
DC Resistance (DCR) - Series:92mOhm Max
Shielding:Unshielded
Ratings:-
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:Nonstandard
Size / Dimension:0.452" L x 0.354" W (11.48mm x 8.99mm)
Height:0.225" (5.72mm)
