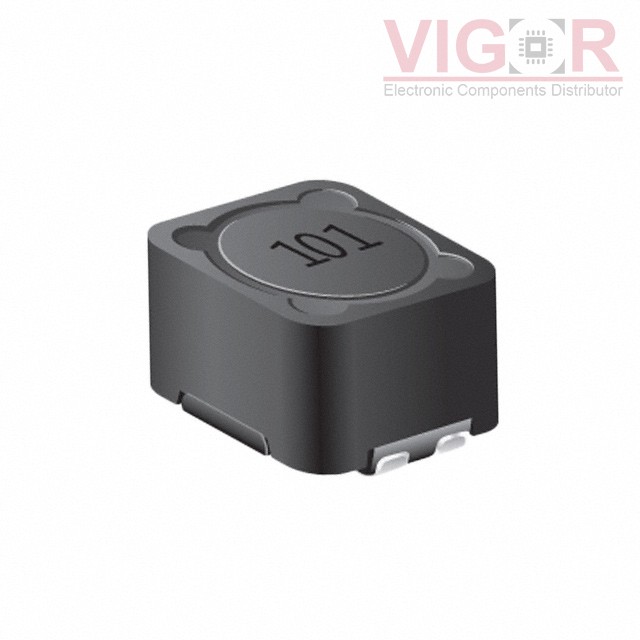

SRF1280A-100M

Image is for reference,
please contact us to get the real picture

Part No :: SRF1280A-100M

Manufacturer: J.W. Miller / Bourns

Description: INDUCT ARRAY 2 COIL 10UH SMD

Catalog: Arrays, Signal Transformers

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: SRF1280A-100M PDF

Availability: 555 pieces

Unit Price: ~~$1.98000~~

Current price of SRF1280A-100M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRF1280A-100M Specifications

Type	Description
Series:	SRF1280A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Coils:	2
Inductance - Connected In Parallel:	10 µH
Inductance - Connected In Series:	40 µH
Tolerance:	±20%
Current Rating - Parallel:	6.04 A
Current Rating - Series:	3.02 A
Current Saturation - Parallel:	11.2 A
Current Saturation - Series:	5.6 A
DC Resistance (DCR) - Parallel:	24.1mOhm Max
DC Resistance (DCR) - Series:	92.1mOhm Max
Shielding:	Shielded
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height:	0.315" (8.00mm)
