74485540220

74485540220

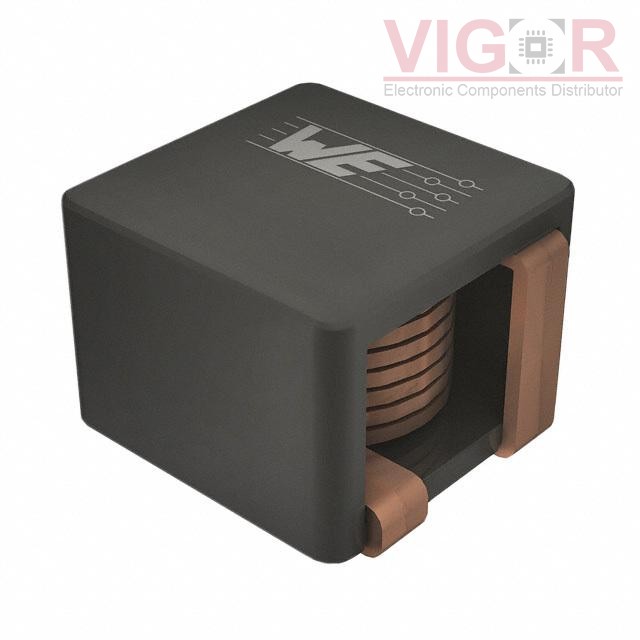

Image is for reference,
please contact us to get the real picture

Part No :

74485540220

Manufacturer
Würth Elektronik Midcom
Description
INDUCT ARRAY 2 COIL 2.2UH SMD
Catalog
Arrays, Signal Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
74485540220 PDF
Availability
0 pieces
Unit Price
$4.43500

Current price of 74485540220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

74485540220 Specifications
Type Description
Series:WE-CFWI
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Number of Coils:2
Inductance - Connected In Parallel:2.2 µH
Inductance - Connected In Series:8.8 µH
Tolerance:±20%
Current Rating - Parallel:18 A
Current Rating - Series:9 A
Current Saturation - Parallel:35 A
Current Saturation - Series:17.5 A
DC Resistance (DCR) - Parallel:6.72mOhm Max
DC Resistance (DCR) - Series:-
Shielding:Shielded
Ratings:-
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:4-SMD
Size / Dimension:0.610" L x 0.520" W (15.50mm x 13.20mm)
Height:0.413" (10.50mm)
