LQM18PN1R0MFHD

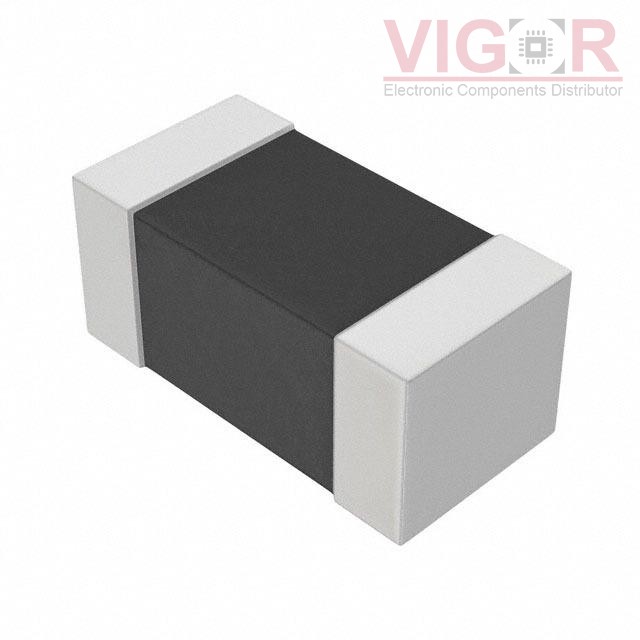

Image is for reference,
please contact us to get the real picture

Part No :: LQM18PN1R0MFHD

Manufacturer: TOKO / Murata

Description: FIXED IND 1UH 1.3A 163 MOHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: LQM18PN1R0MFHD PDF

Availability: 3484 pieces

Unit Price: ~~$0.46000~~

Current price of LQM18PN1R0MFHD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LQM18PN1R0MFHD Specifications

Type	Description
Series:	LQM18
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	1.3 A
Current - Saturation (Isat):	550mA
Shielding:	Shielded
DC Resistance (DCR):	163mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	100MHz
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):	0.037" (0.95mm)
