RL822-560K-RC

RL822-560K-RC

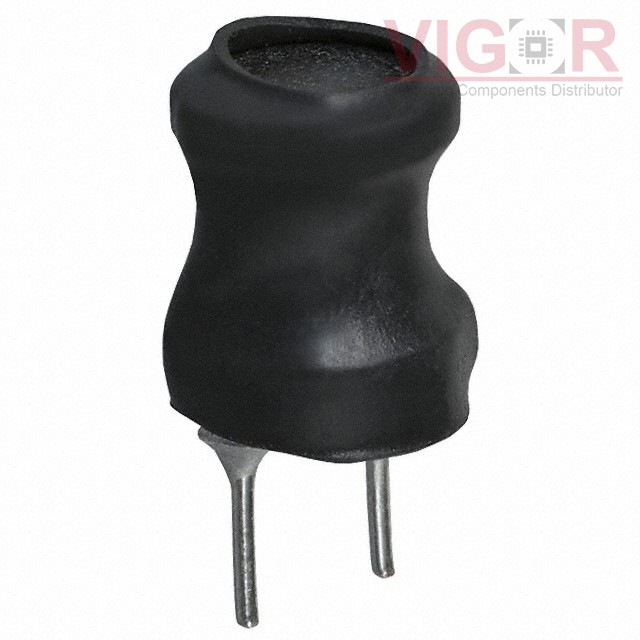

Image is for reference,
please contact us to get the real picture

Part No :

RL822-560K-RC

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 760MA 200 MOHM TH
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
RL822-560K-RC PDF
Availability
0 pieces
Unit Price
$0.42672

Current price of RL822-560K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RL822-560K-RC Specifications
Type Description
Series:RL822
Package:Bulk
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±10%
Current Rating (Amps):760 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):200mOhm Max
Q @ Freq:30 @ 2.52MHz
Frequency - Self Resonant:5.4MHz
Ratings:-
Operating Temperature:-55°C ~ 105°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.335" Dia (8.50mm)
Height - Seated (Max):0.433" (11.00mm)
