PA5003.801NLT

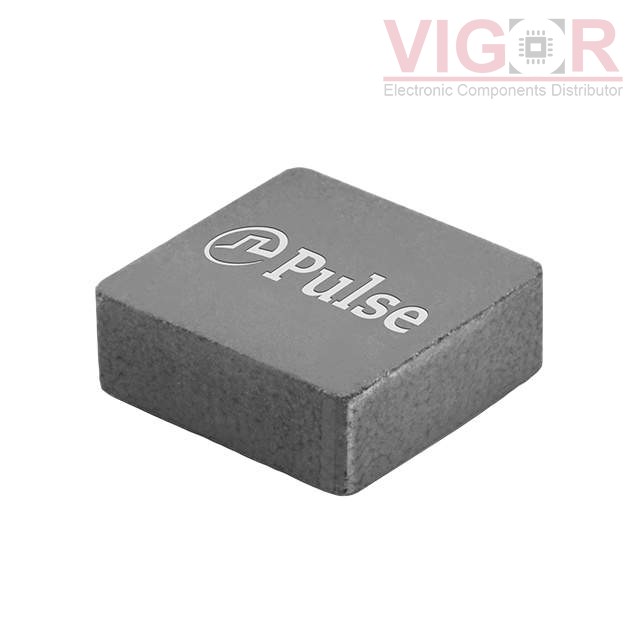

Image is for reference,
please contact us to get the real picture

Part No :: PA5003.801NLT

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 800NH 13.1A 5.65 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 15 - Aug 19 2025

DataSheet: PA5003.801NLT PDF

Availability: 0 pieces

Unit Price: ~~$0.86800~~

Current price of PA5003.801NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PA5003.801NLT Specifications

Type	Description
Series:	PA5003.XXXNLT
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Ferrite
Inductance:	800 nH
Tolerance:	±20%
Current Rating (Amps):	13.1 A
Current - Saturation (Isat):	20A
Shielding:	Shielded
DC Resistance (DCR):	5.65mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max):	0.122" (3.10mm)
