15223C

15223C

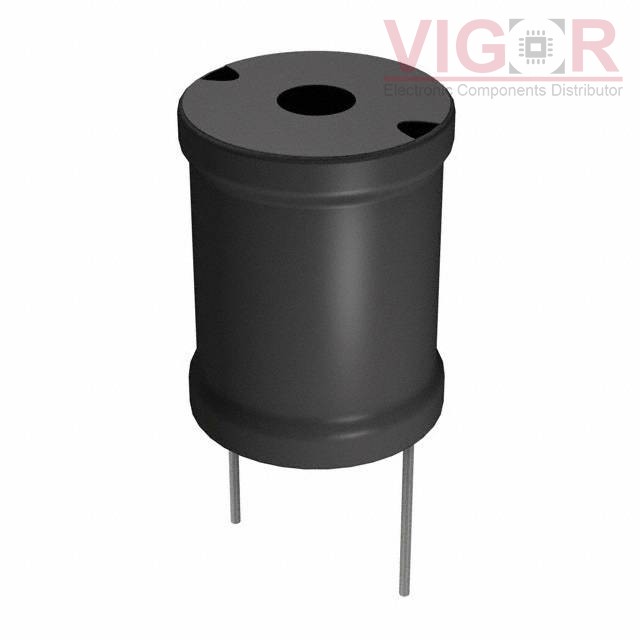

Image is for reference,
please contact us to get the real picture

Part No :

15223C

Manufacturer
Murata Power Solutions
Description
FIXED IND 22UH 6.8A 18.8 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
15223C PDF
Availability
0 pieces
Unit Price
$1.74000

Current price of 15223C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

15223C Specifications
Type Description
Series:1500
Package:Tray
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:22 µH
Tolerance:±10%
Current Rating (Amps):6.8 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):18.8mOhm Max
Q @ Freq:102 @ 1MHz
Frequency - Self Resonant:11MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Radial, Vertical Cylinder
Supplier Device Package:-
Size / Dimension:0.661" Dia (16.80mm)
Height - Seated (Max):0.839" (21.30mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PM74SB-220M-RC

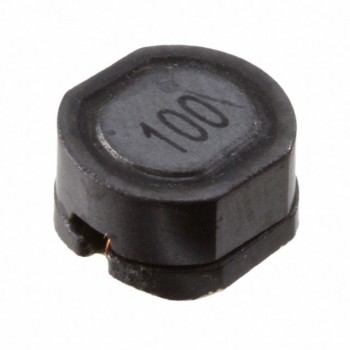

PM74SB-220M-RC

FIXED IND 22UH 1.12A 130MOHM SMD
HOT 74479773154

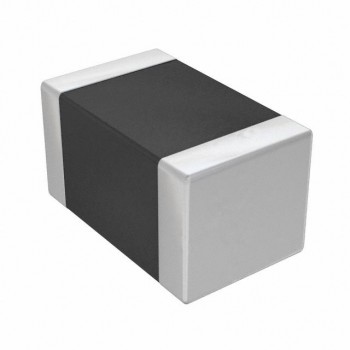

74479773154

FIXED IND 540NH 1.3A 120 MOHM
HOT 74431323012

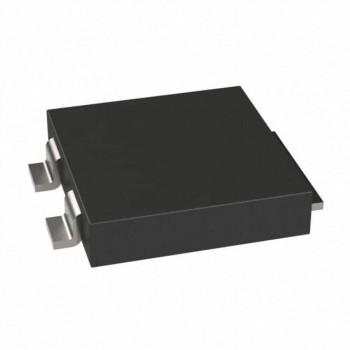

74431323012
