B82422H1334J000

B82422H1334J000

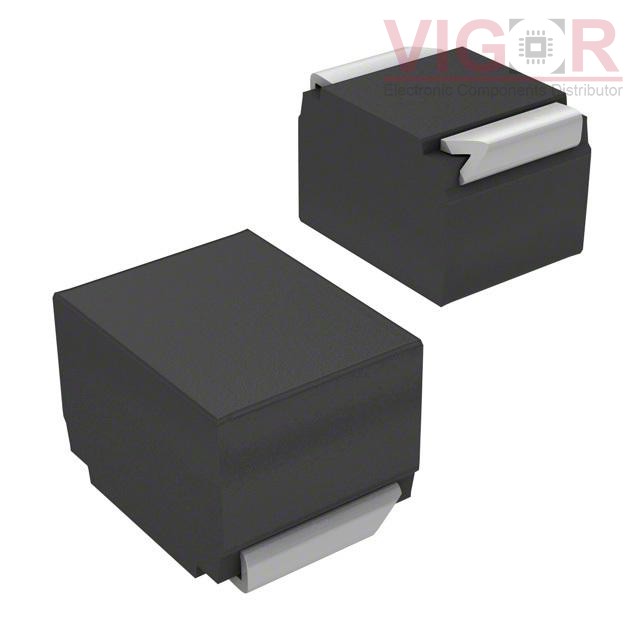

Image is for reference,
please contact us to get the real picture

Part No :

B82422H1334J000

Manufacturer
TDK EPCOS
Description
FIXED IND 330UH 90MA 13 OHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
B82422H1334J000 PDF
Availability
1896 pieces
Unit Price
$0.75000

Current price of B82422H1334J000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82422H1334J000 Specifications
Type Description
Series:SIMID
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:330 µH
Tolerance:±5%
Current Rating (Amps):90 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):13Ohm Max
Q @ Freq:20 @ 796kHz
Frequency - Self Resonant:4.5MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 150°C
Inductance Frequency - Test:796 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:2-SMD, J-Lead
Supplier Device Package:1210 (3225 Metric)
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.094" (2.40mm)
