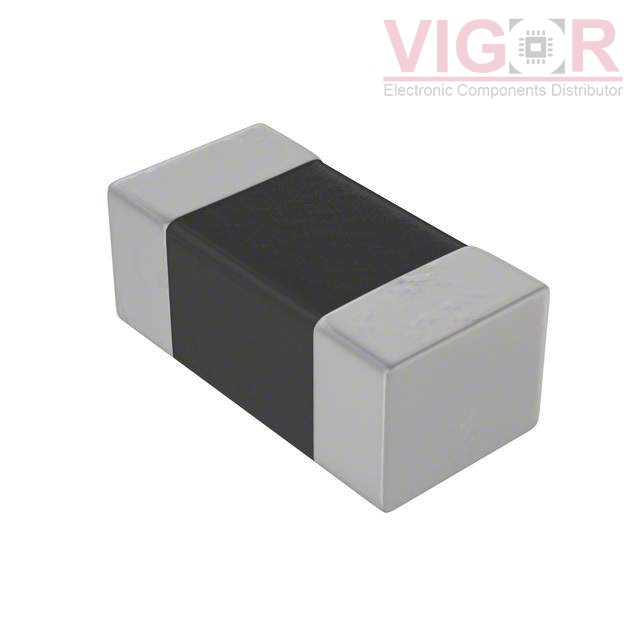

CS321613-R56K

Image is for reference,
please contact us to get the real picture

Part No :: CS321613-R56K

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 560NH 150MA 350MOHM SM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 21 - Aug 25 2025

DataSheet: CS321613-R56K PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of CS321613-R56K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS321613-R56K Specifications

Type	Description
Series:	CS321613
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Type:	Multilayer
Material - Core:	Ferrite
Inductance:	560 nH
Tolerance:	±10%
Current Rating (Amps):	150 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	350mOhm Max
Q @ Freq:	50 @ 25MHz
Frequency - Self Resonant:	115MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	25 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206 (3216 Metric)
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.059" (1.50mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SCH4312-101

FIXED IND 100UH 260MA 3.36 OHM

HOT

SCRH105R-681

FIXED IND 680UH 560MA 1.6 OHM

HOT

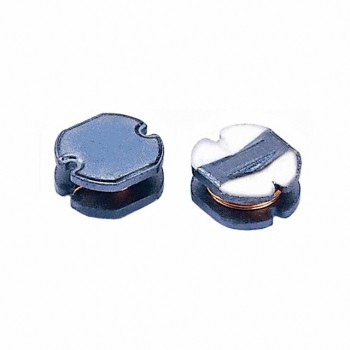

SC73-331
