NS10145T681MNV

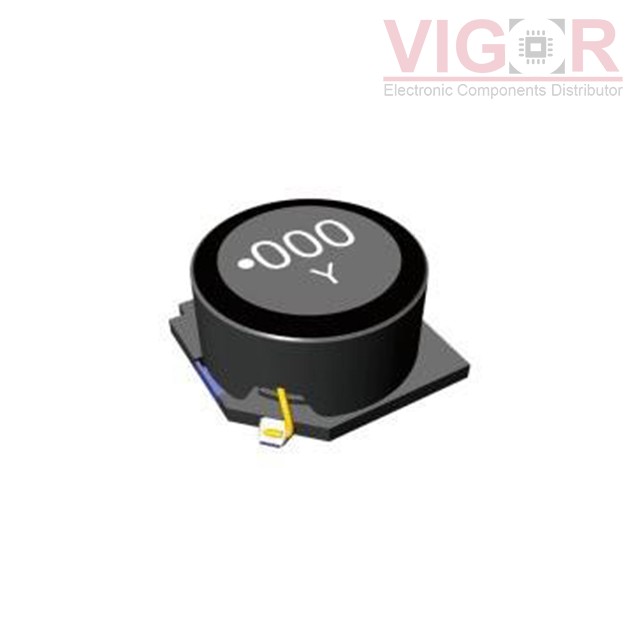

Image is for reference,
please contact us to get the real picture

Part No :: NS10145T681MNV

Manufacturer: TAIYO YUDEN

Description: FIXED IND 680UH 420MA 1.88 OHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: NS10145T681MNV PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of NS10145T681MNV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NS10145T681MNV Specifications

Type	Description
Series:	NS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±20%
Current Rating (Amps):	420 mA
Current - Saturation (Isat):	500mA
Shielding:	Shielded
DC Resistance (DCR):	1.88Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	2.3MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max):	0.191" (4.85mm)
