760308103206

760308103206

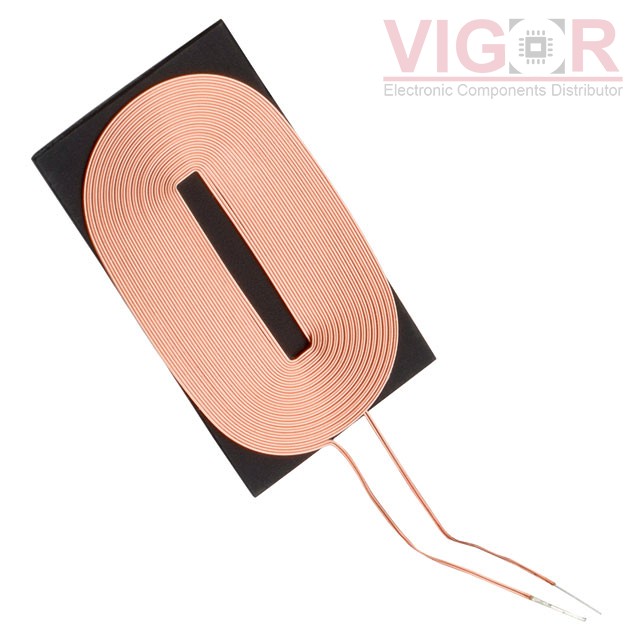

Image is for reference,
please contact us to get the real picture

Part No :

760308103206

Manufacturer
Würth Elektronik Midcom
Description
RX 1 COIL 1 LAYER 7.5UH 1.55A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
760308103206 PDF
Availability
325 pieces
Unit Price
$9.86000

Current price of 760308103206 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308103206 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Receiver
Type:1 Coil, 1 Layer
Inductance:7.5µH
Tolerance:±10%
DC Resistance (DCR):340mOhm
Q @ Freq:16 @ 125kHz
Current Rating (Amps):1.55A
Current - Saturation (Isat):3A
Frequency - Self Resonant:23MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm)
