760308102142

760308102142

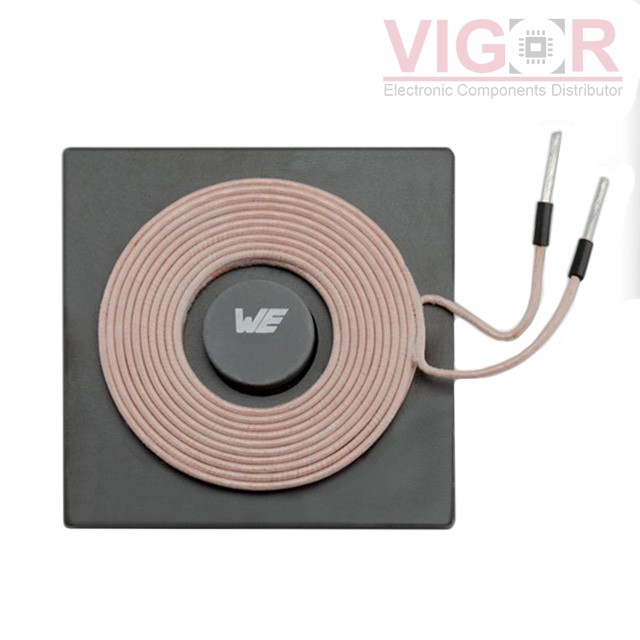

Image is for reference,
please contact us to get the real picture

Part No :

760308102142

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 1 LYR BIFIL 5.8UH 18A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 23 - Jul 27 2025
DataSheet
760308102142 PDF
Availability
19 pieces
Unit Price
$20.08000

Current price of 760308102142 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308102142 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Transmitter
Type:1 Coil, 2 Layer, Bifilar
Inductance:5.8µH
Tolerance:±10%
DC Resistance (DCR):12mOhm Max
Q @ Freq:100 @ 125kHz
Current Rating (Amps):18A
Current - Saturation (Isat):30A
Frequency - Self Resonant:12MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)
