760308101220

760308101220

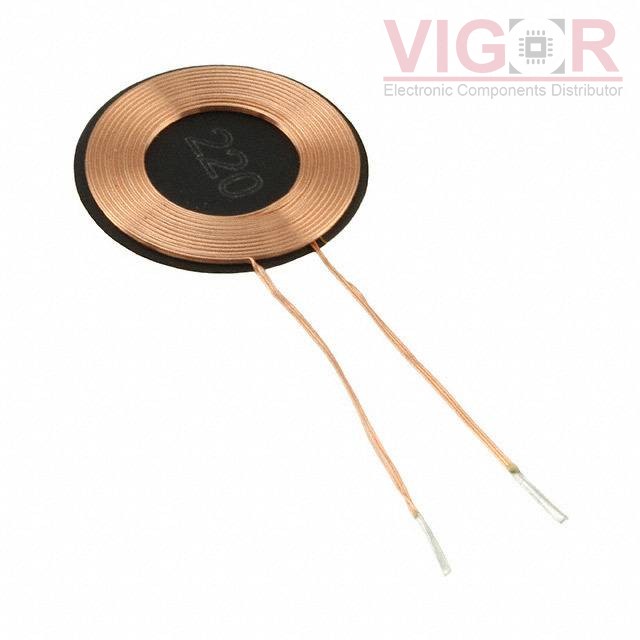

Image is for reference,
please contact us to get the real picture

Part No :

760308101220

Manufacturer
Würth Elektronik Midcom
Description
RX 1 COIL 3 LAYER BIFILAR 12.6UH
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
760308101220 PDF
Availability
16 pieces
Unit Price
$7.98000

Current price of 760308101220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308101220 Specifications
Type Description
Series:WE-WPCC
Package:Box
Part Status:Active
Function:Receiver
Type:1 Coil, 3 Layer, Bifilar
Inductance:12.6µH
Tolerance:±10%
DC Resistance (DCR):340mOhm Max
Q @ Freq:20 @ 125kHz
Current Rating (Amps):1.1A
Current - Saturation (Isat):2.5A
Frequency - Self Resonant:19MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:0.67" Dia x 0.03" H (17.0mm x 0.8mm)
