MUX36S16IPW

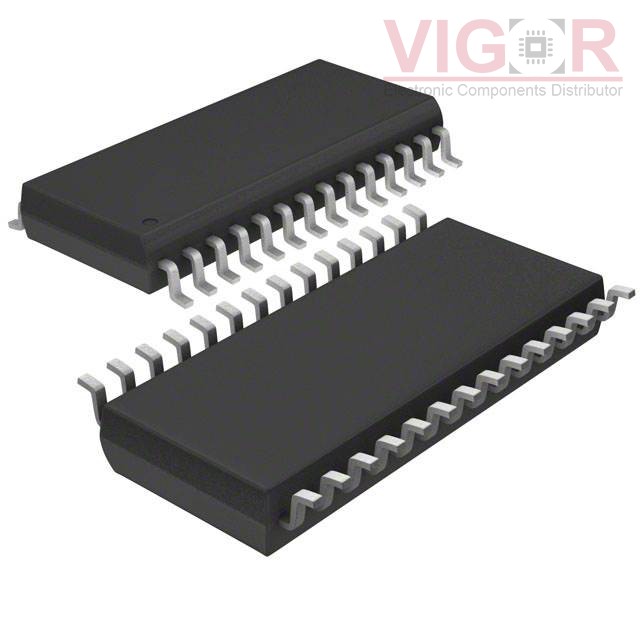

Image is for reference,
please contact us to get the real picture

Part No :: MUX36S16IPW

Manufacturer: Texas Instruments

Description: IC SWITCH SINGLE 28TSSOP

Catalog: Interface - Analog Switches, Multiplexers, Demultiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: MUX36S16IPW PDF

Availability: 163 pieces

Unit Price: ~~$6.98000~~

Current price of MUX36S16IPW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MUX36S16IPW Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Switch Circuit:	-
Multiplexer/Demultiplexer Circuit:	16:1
Number of Circuits:	1
On-State Resistance (Max):	170Ohm
Channel-to-Channel Matching (ΔRon):	6Ohm (Typ)
Voltage - Supply, Single (V+):	10V ~ 36V
Voltage - Supply, Dual (V±):	±5V ~ 18V
Switch Time (Ton, Toff) (Max):	136ns, 78ns
-3db Bandwidth:	-
Charge Injection:	0.31pC
Channel Capacitance (CS(off), CD(off)):	2.1pF, 11.1pF
Current - Leakage (IS(off)) (Max):	40pA
Crosstalk:	-100dB @ 1MHz
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	28-TSSOP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

MC14066BD

SPST, 4 FUNC, 1 CHANNEL

HOT

ADG1313YRZ-REEL7

SPST, 4 FUNC, 1 CHANNEL, CMOS, P

HOT

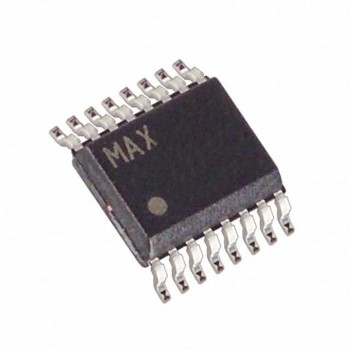

MAX4536EEE+
