STG3699AUTR

STG3699AUTR

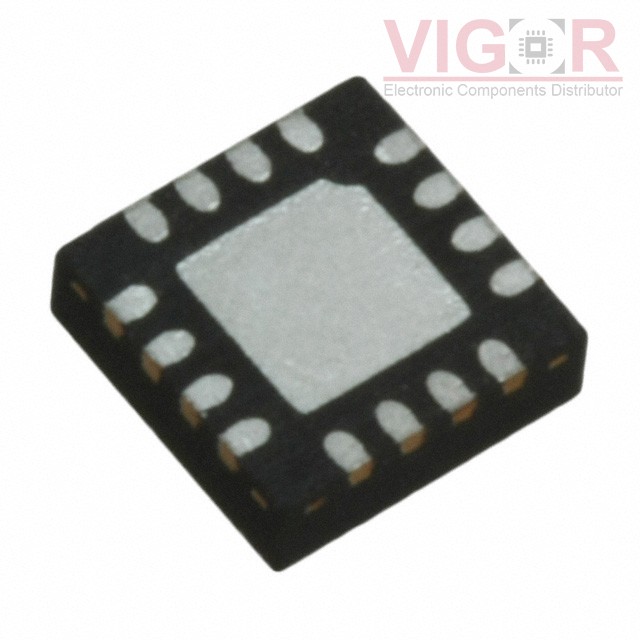

Image is for reference,
please contact us to get the real picture

Part No :

STG3699AUTR

Manufacturer
STMicroelectronics
Description
IC SWITCH QUAD SPDT 16QFN
Catalog
Interface - Analog Switches, Multiplexers, Demultiplexers
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
STG3699AUTR PDF
Availability
1307 pieces
Unit Price
$0.00000

Current price of STG3699AUTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STG3699AUTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):450mOhm
Channel-to-Channel Matching (ΔRon):60mOhm
Voltage - Supply, Single (V+):1.65V ~ 4.3V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):55ns, 30ns
-3db Bandwidth:50MHz
Charge Injection:35pC
Channel Capacitance (CS(off), CD(off)):5pF
Current - Leakage (IS(off)) (Max):20nA
Crosstalk:-54dB @ 100kHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:16-UFQFN Exposed Pad
Supplier Device Package:16-QFN (2.5x2.5)
