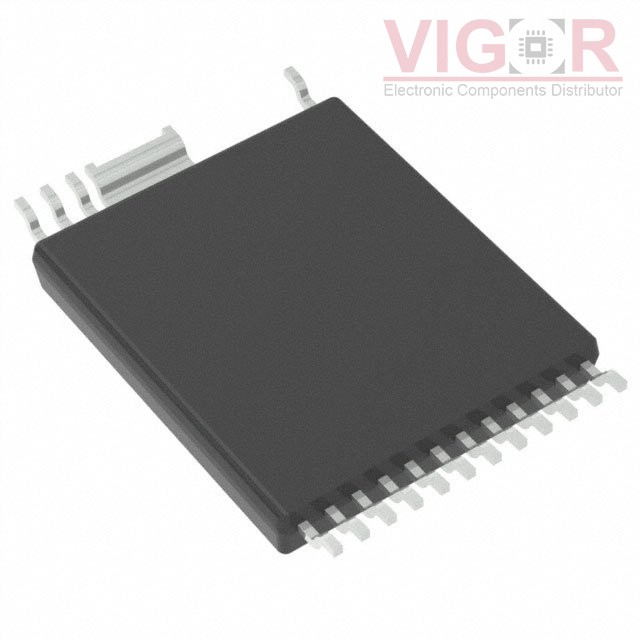

INN3278C-H114-TL

Image is for reference,
please contact us to get the real picture

Part No :

INN3278C-H114-TL

Manufacturer
Power Integrations
Description
INNOSWITCH3-CP SIZE 8 FLYBACK SW
Catalog
PMIC - AC DC Converters, Offline Switchers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
INN3278C-H114-TL PDF
Availability
445 pieces
Unit Price
$4.77000

Current price of INN3278C-H114-TL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:PowiGaN™, InnoSwitch™3-CP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:750V
Topology:Flyback, Secondary Side SR
Voltage - Start Up:-
Voltage - Supply (Vcc/Vdd):-
Duty Cycle:-
Frequency - Switching:70kHz
Power (Watts):75 W
Fault Protection:Current Limiting, Over Temperature, Over Voltage
Control Features:-
Operating Temperature:-40°C ~ 105°C (TA)
Package / Case:24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads
Supplier Device Package:InSOP-24D
Mounting Type:Surface Mount
