S-1315B2J-M5T1U3

S-1315B2J-M5T1U3

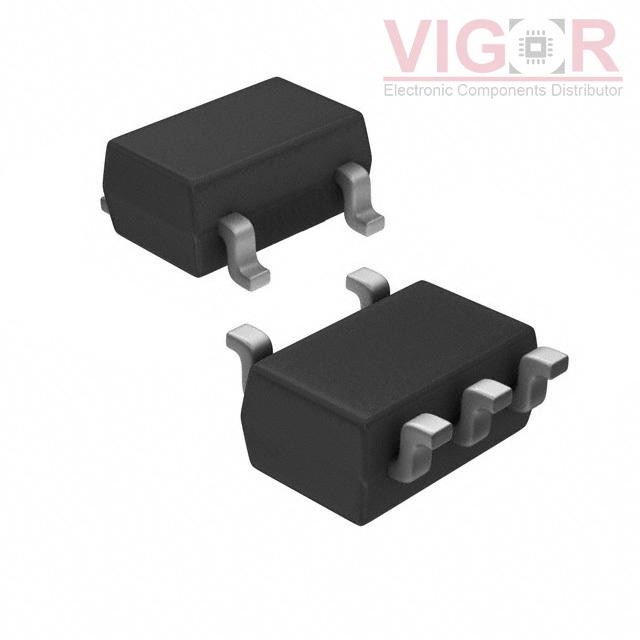

Image is for reference,
please contact us to get the real picture

Part No :

S-1315B2J-M5T1U3

Manufacturer
ABLIC U.S.A. Inc.
Description
IC REG LIN 2.85V 200MA SOT23-5
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
S-1315B2J-M5T1U3 PDF
Availability
2447 pieces
Unit Price
$0.35966

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of S-1315B2J-M5T1U3 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

S-1315B2J-M5T1U3 Specifications
Type Description
Series:S-1315
Package:Tape & Reel (TR)
Part Status:Active
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:1
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):2.85V
Voltage - Output (Max):-
Voltage Dropout (Max):0.28V @ 200mA
Current - Output:200mA
Current - Quiescent (Iq):1 µA
Current - Supply (Max):13 µA
PSRR:55dB (1kHz)
Control Features:Enable
Protection Features:Over Current
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:SC-74A, SOT-753
Supplier Device Package:SOT-23-5
