STGAP2SCM

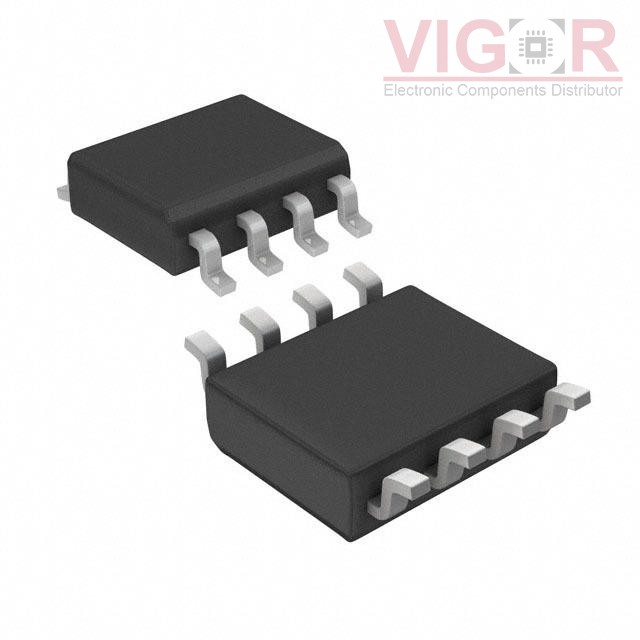

Image is for reference,
please contact us to get the real picture

Part No :: STGAP2SCM

Manufacturer: STMicroelectronics

Description: DGTL ISO

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: STGAP2SCM PDF

Availability: 0 pieces

Unit Price: ~~$1.17005~~

Current price of STGAP2SCM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGAP2SCM Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Magnetic Coupling
Number of Channels:	1
Voltage - Isolation:	1700VDC
Common Mode Transient Immunity (Min):	100V/ns
Propagation Delay tpLH / tpHL (Max):	100ns, 100ns
Pulse Width Distortion (Max):	20ns
Rise / Fall Time (Typ):	30ns, 30ns
Current - Output High, Low:	4A, 4A
Current - Peak Output:	-
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	3V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO
Approval Agency:	-

Please confirm the specifications of the products when ordering.
