1ED3123MU12HXUMA1

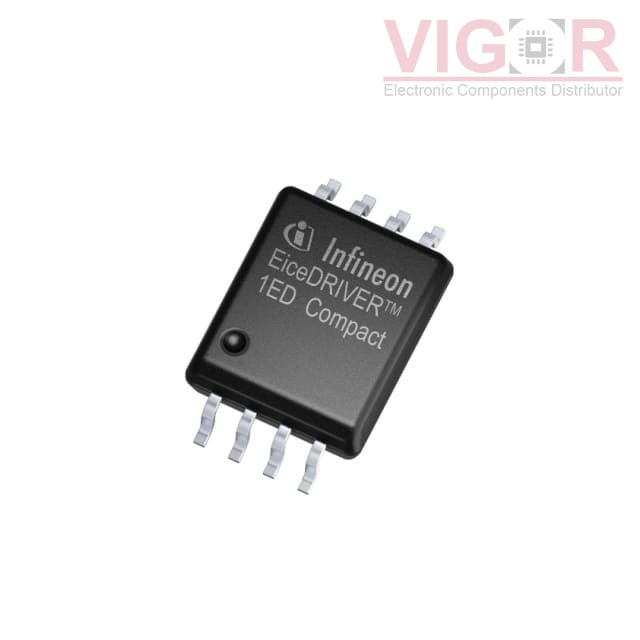

Image is for reference,
please contact us to get the real picture

Part No :: 1ED3123MU12HXUMA1

Manufacturer: IR (Infineon Technologies)

Description: 1ED3123MU12HXUMA1

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: 1ED3123MU12HXUMA1 PDF

Availability: 701 pieces

Unit Price: ~~$3.35000~~

Current price of 1ED3123MU12HXUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1ED3123MU12HXUMA1 Specifications

Type	Description
Series:	EiceDriver™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Magnetic Coupling
Number of Channels:	1
Voltage - Isolation:	1200Vrms
Common Mode Transient Immunity (Min):	200kV/µs
Propagation Delay tpLH / tpHL (Max):	-
Pulse Width Distortion (Max):	-
Rise / Fall Time (Typ):	15ns, 15ns
Current - Output High, Low:	5.5A, 5.5A
Current - Peak Output:	14A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	10V ~ 35V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	PG-DSO-8-66
Approval Agency:	UL

Please confirm the specifications of the products when ordering.
