ADUM4138WBRNZ-RL

ADUM4138WBRNZ-RL

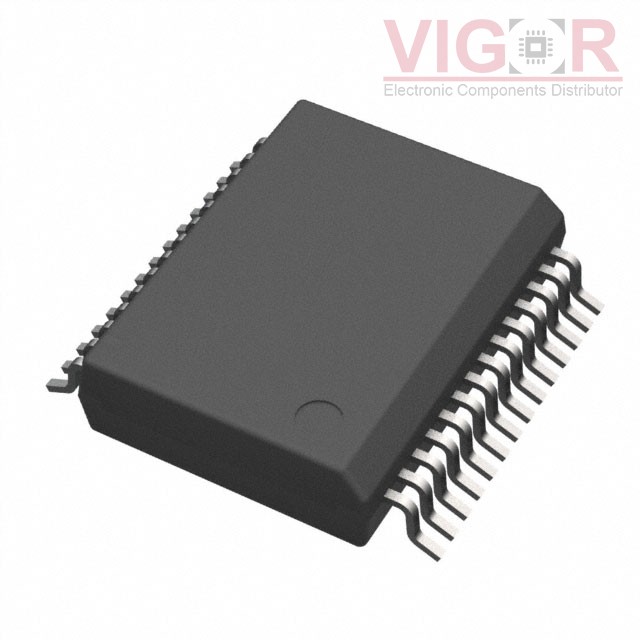

Image is for reference,
please contact us to get the real picture

Part No :

ADUM4138WBRNZ-RL

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
ISO IGBT GATE DRIVERW/FLYBACK CO
Catalog
Isolators - Gate Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
ADUM4138WBRNZ-RL PDF
Availability
0 pieces
Unit Price
$5.37000

Current price of ADUM4138WBRNZ-RL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADUM4138WBRNZ-RL Specifications
Type Description
Series:Automotive
Package:Tape & Reel (TR)
Part Status:Active
Technology:Magnetic Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):150kV/µs
Propagation Delay tpLH / tpHL (Max):130ns, 121ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):95ns, 100ns
Current - Output High, Low:-
Current - Peak Output:6A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:12V ~ 25V
Operating Temperature:-40°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC_W_FP
Approval Agency:CSA, UL, VDE
