SI8284BC-ISR

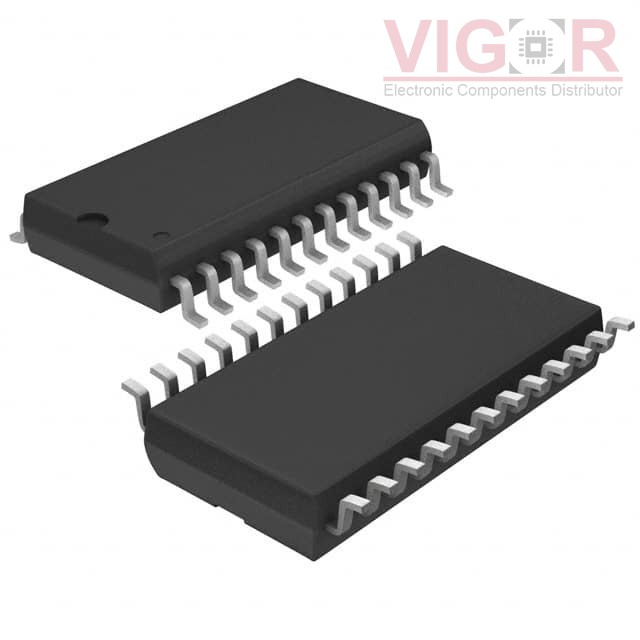

Image is for reference,
please contact us to get the real picture

Part No :: SI8284BC-ISR

Manufacturer: Silicon Labs

Description: DGTL ISO 3.75KV 1CH GATE DRVR

Catalog: Isolators - Gate Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: SI8284BC-ISR PDF

Availability: 1248 pieces

Unit Price: ~~$4.25000~~

Current price of SI8284BC-ISR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SI8284BC-ISR Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	35kV/µs
Propagation Delay tpLH / tpHL (Max):	50ns, 50ns
Pulse Width Distortion (Max):	5ns
Rise / Fall Time (Typ):	5.5ns, 8.5ns
Current - Output High, Low:	2.5A, 3A
Current - Peak Output:	4A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	2.8V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
Approval Agency:	CQC, CSA, UL, VDE

Please confirm the specifications of the products when ordering.
