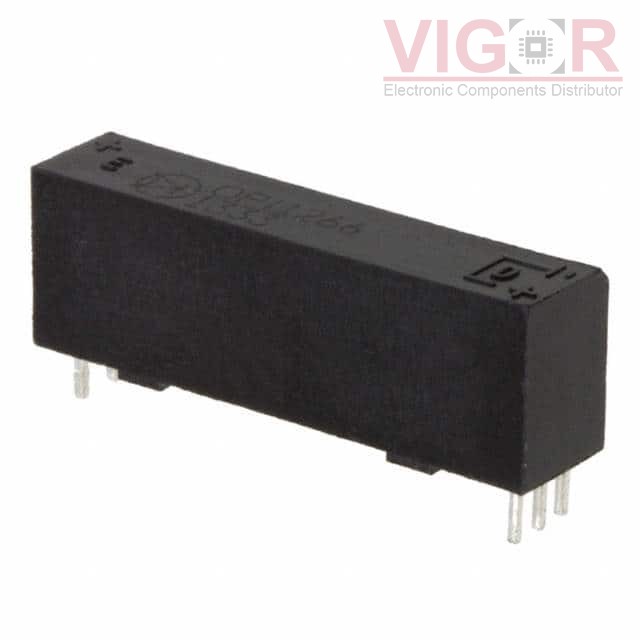

OPI1266

Image is for reference,
please contact us to get the real picture

Part No :: OPI1266

Manufacturer: TT Electronics / Optek Technology

Description: OPTOISO 16KV OPEN COLLECTOR

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: OPI1266 PDF

Availability: 0 pieces

Unit Price: ~~$7.45000~~

Current price of OPI1266 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

OPI1266 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	16000VDC
Common Mode Transient Immunity (Min):	-
Input Type:	DC
Output Type:	Open Collector, Schottky Clamped
Current - Output / Channel:	-
Data Rate:	500kbps
Propagation Delay tpLH / tpHL (Max):	800ns, 800ns
Rise / Fall Time (Typ):	-
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50mA
Voltage - Supply:	7V
Operating Temperature:	-40°C ~ 70°C
Mounting Type:	Through Hole
Package / Case:	5-DIP
Supplier Device Package:	-

Please confirm the specifications of the products when ordering.
