PS9309L2-AX

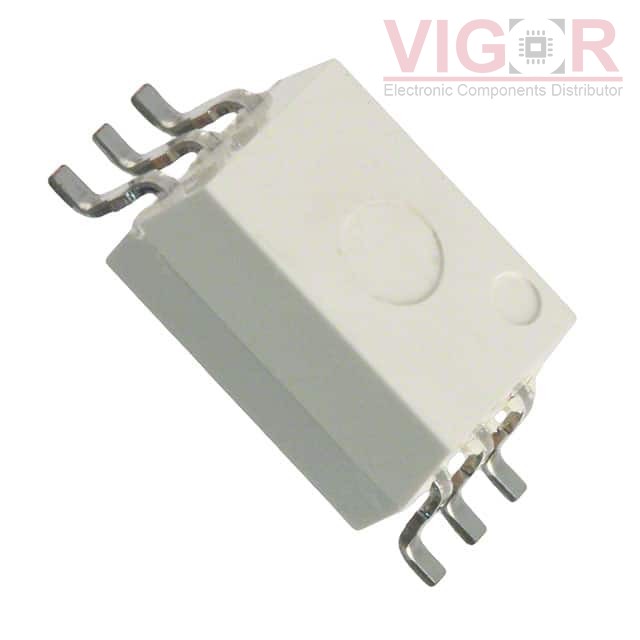

Image is for reference,
please contact us to get the real picture

Part No :: PS9309L2-AX

Manufacturer: Renesas Electronics America

Description: OPTOISO 5KV PUSH PULL 6SDIP

Catalog: Optoisolators - Logic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: PS9309L2-AX PDF

Availability: 20 pieces

Unit Price: ~~$5.19000~~

Current price of PS9309L2-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS9309L2-AX Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	15kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	25 mA
Data Rate:	1Mbps
Propagation Delay tpLH / tpHL (Max):	200ns, 200ns
Rise / Fall Time (Typ):	24ns, 3.2ns
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-40°C ~ 110°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SDIP Gull Wing
