CNC1S171S

CNC1S171S

Image is for reference,
please contact us to get the real picture

Part No :

CNC1S171S

Manufacturer
Panasonic
Description
OPTOISOLATOR 5KV TRANSISTOR 4DIP
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
CNC1S171S PDF
Availability
381 pieces
Unit Price
$0.33000

Current price of CNC1S171S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CNC1S171S Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Number of Channels:1
Voltage - Isolation:5000Vrms
Current Transfer Ratio (Min):50% @ 5mA
Current Transfer Ratio (Max):600% @ 5mA
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):2µs, 3µs
Input Type:DC
Output Type:Transistor
Voltage - Output (Max):80V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.35V
Current - DC Forward (If) (Max):50 mA
Vce Saturation (Max):200mV
Operating Temperature:-30°C ~ 100°C
Mounting Type:Through Hole
Package / Case:4-DIP (0.400", 10.16mm)
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HMA124R1

HMA124R1

TRANSISTOR OUTPUT OPTOCOUPLER
HOT LTV-815S-TA1

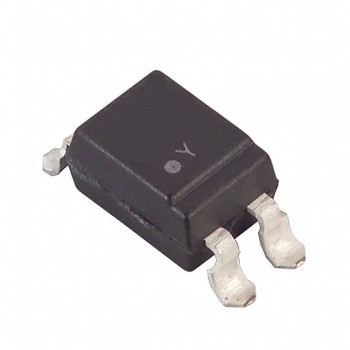

LTV-815S-TA1
