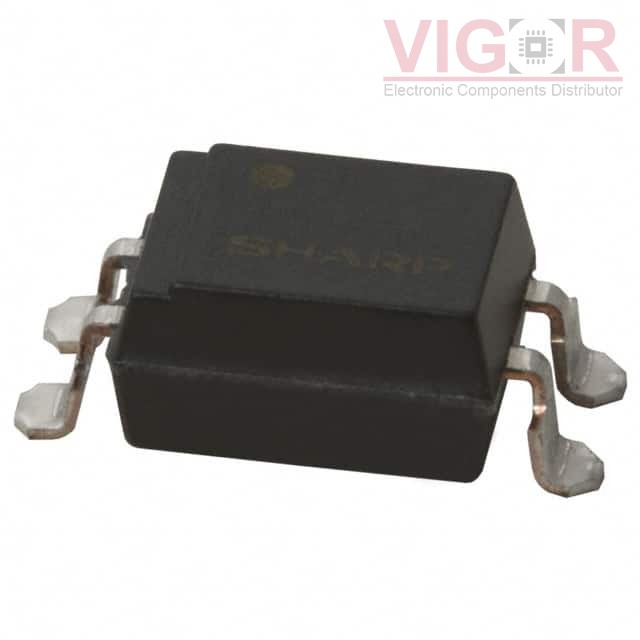

PC814XP1J00F

Image is for reference,
please contact us to get the real picture

Part No :: PC814XP1J00F

Manufacturer: Sharp Microelectronics

Description: OPTOISOLATOR 5KV TRANS 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: PC814XP1J00F PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PC814XP1J00F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC814XP1J00F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Current Transfer Ratio (Min):	100% @ 1mA
Current Transfer Ratio (Max):	150% @ 1mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	4µs, 3µs
Input Type:	AC, DC
Output Type:	Transistor
Voltage - Output (Max):	80V
Current - Output / Channel:	50mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	50 mA
Vce Saturation (Max):	200mV
Operating Temperature:	-30°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SMD
