PS2701A-1-F3-A

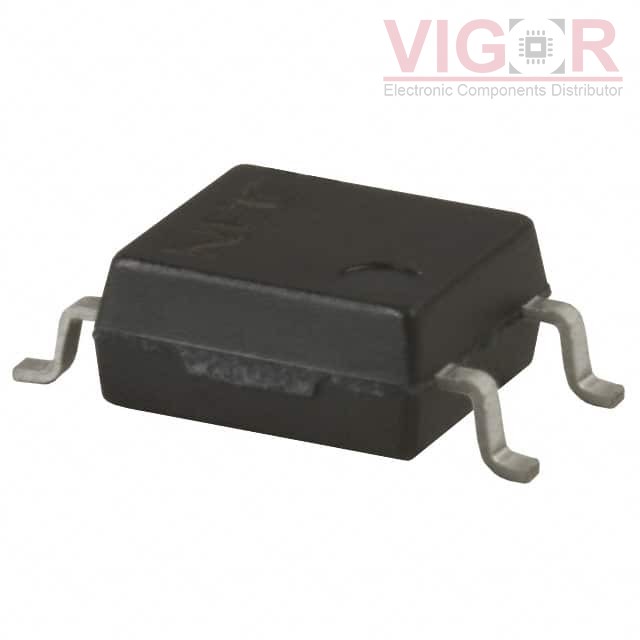

Image is for reference,
please contact us to get the real picture

Part No :: PS2701A-1-F3-A

Manufacturer: CEL (California Eastern Laboratories)

Description: OPTOISOLATOR 3.75KV TRANS 4SMD

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: PS2701A-1-F3-A PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of PS2701A-1-F3-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PS2701A-1-F3-A Specifications

Type	Description
Series:	NEPOC
Package:	Tape & Reel (TR)
Part Status:	Discontinued at Digi-Key
Number of Channels:	1
Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	50% @ 5mA
Current Transfer Ratio (Max):	300% @ 5mA
Turn On / Turn Off Time (Typ):	-
Rise / Fall Time (Typ):	5µs, 7µs
Input Type:	DC
Output Type:	Transistor
Voltage - Output (Max):	70V
Current - Output / Channel:	30mA
Voltage - Forward (Vf) (Typ):	1.2V
Current - DC Forward (If) (Max):	30 mA
Vce Saturation (Max):	300mV
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	4-SMD, Gull Wing
Supplier Device Package:	4-SOP

Please confirm the specifications of the products when ordering.
