PC95PQI26/12Z-12

PC95PQI26/12Z-12

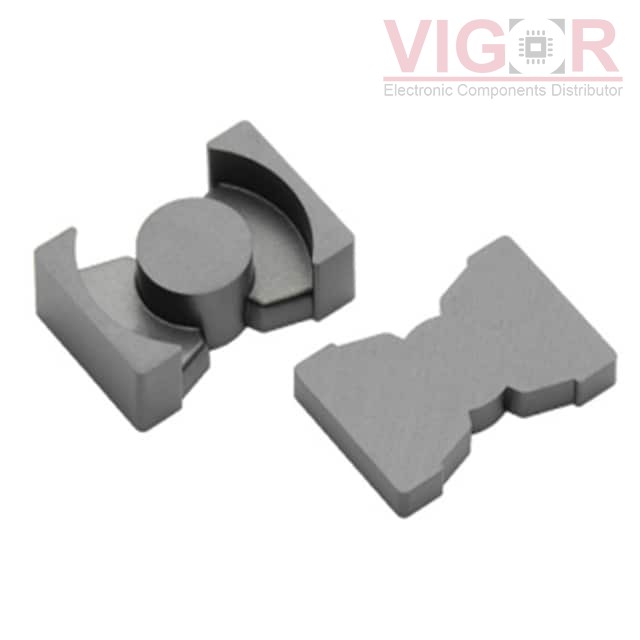

Image is for reference,
please contact us to get the real picture

Part No :

PC95PQI26/12Z-12

Manufacturer
TDK Corporation
Description
FERRITE CORE PQI 11.95UH 1SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
PC95PQI26/12Z-12 PDF
Availability
0 pieces
Unit Price
$4.05000

Current price of PC95PQI26/12Z-12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC95PQI26/12Z-12 Specifications
Type Description
Series:Planar
Package:Tray
Part Status:Active
Core Type:HPQ, PQD
Supplier Device Package:PQI 26 x 12
Material:PC95
Diameter:-
Inductance Factor (Al):11.95 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.22
Effective Length (le) mm:123
Effective Area (Ae) mm²:27.7
Minimum Core Cross Section (Amin) mm²:109
Effective Magnetic Volume (Ve) mm³:3410
Finish:Uncoated
Height:7.30mm
Length:26.50mm
Width:19.00mm
