B65517D0100A048

B65517D0100A048

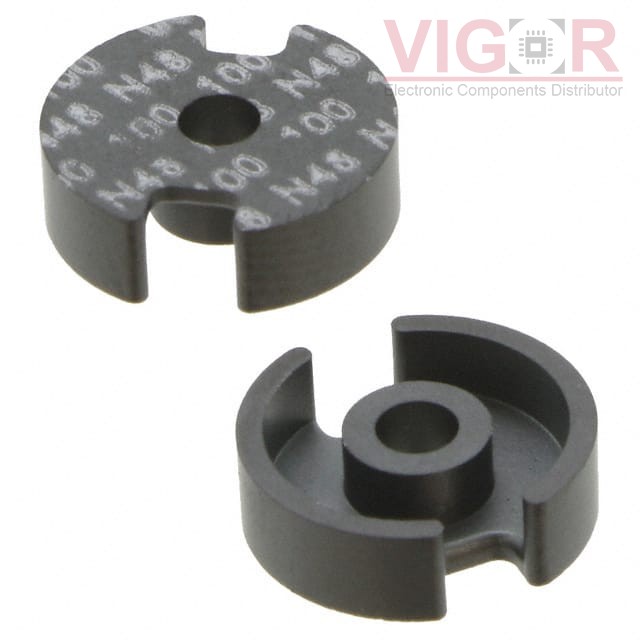

Image is for reference,
please contact us to get the real picture

Part No :

B65517D0100A048

Manufacturer
TDK EPCOS
Description
FERRITE CORE P 100NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
B65517D0100A048 PDF
Availability
0 pieces
Unit Price
$1.55000

Current price of B65517D0100A048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65517D0100A048 Specifications
Type Description
Series:B65517
Package:Box
Part Status:Active
Core Type:P (Pot Core)
Supplier Device Package:P 9 x 5
Material:N48
Diameter:9.30mm
Inductance Factor (Al):100 nH
Tolerance:±3%
Gap:Gapped
Effective Permeability (µe):100
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:1.25
Effective Length (le) mm:12.5
Effective Area (Ae) mm²:10
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:125
Finish:Uncoated
Height:2.70mm
Length:-
Width:-
