B65803J0000R045

B65803J0000R045

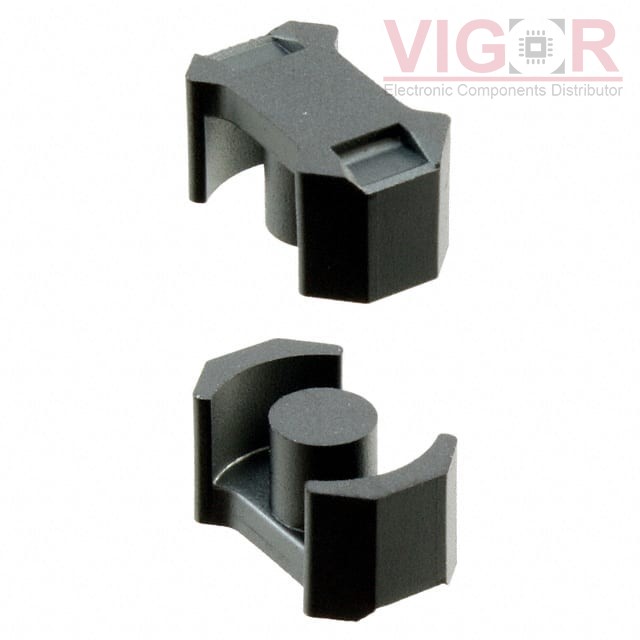

Image is for reference,
please contact us to get the real picture

Part No :

B65803J0000R045

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 1.7UH N45 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
B65803J0000R045 PDF
Availability
0 pieces
Unit Price
$1.09419

Current price of B65803J0000R045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65803J0000R045 Specifications
Type Description
Series:B65803
Package:Box
Part Status:Active
Core Type:RM
Supplier Device Package:RM 4
Material:N45
Diameter:-
Inductance Factor (Al):1.7 µH
Tolerance:-20%, +30%
Gap:Ungapped
Effective Permeability (µe):2290
Initial Permeability (µi):3800
Core Factor (ΣI/A) mm-1:1.7
Effective Length (le) mm:22
Effective Area (Ae) mm²:13
Minimum Core Cross Section (Amin) mm²:11.3
Effective Magnetic Volume (Ve) mm³:286
Finish:Uncoated
Height:5.25mm
Length:11.00mm
Width:4.60mm
