B65811D0630J048

B65811D0630J048

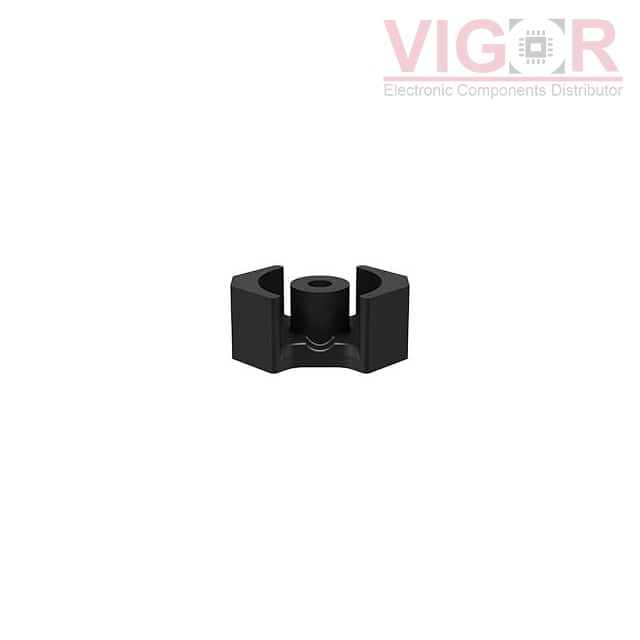

Image is for reference,
please contact us to get the real picture

Part No :

B65811D0630J048

Manufacturer
TDK EPCOS
Description
FERRITE CORE RM 630NH N48 2PCS
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
B65811D0630J048 PDF
Availability
558 pieces
Unit Price
$2.89000

Current price of B65811D0630J048 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B65811D0630J048 Specifications
Type Description
Series:B65811
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Active
Core Type:RM
Supplier Device Package:RM 8
Material:N48
Diameter:-
Inductance Factor (Al):630 nH
Tolerance:±5%
Gap:Gapped
Effective Permeability (µe):338
Initial Permeability (µi):-
Core Factor (ΣI/A) mm-1:0.68
Effective Length (le) mm:35.1
Effective Area (Ae) mm²:52
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:1825
Finish:Uncoated
Height:8.25mm
Length:23.20mm
Width:11.00mm
