B64290L0696X037

B64290L0696X037

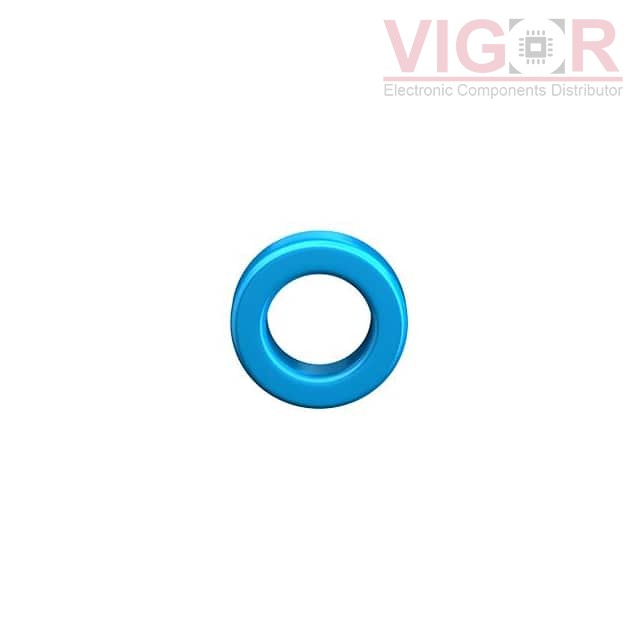

Image is for reference,
please contact us to get the real picture

Part No :

B64290L0696X037

Manufacturer
TDK EPCOS
Description
FERRITE CORE TOROID 5UH T37
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B64290L0696X037 PDF
Availability
0 pieces
Unit Price
$22.53925

Current price of B64290L0696X037 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B64290L0696X037 Specifications
Type Description
Series:B64290
Package:Box
Part Status:Active
Core Type:Toroid
Supplier Device Package:-
Material:T37
Diameter:70.00mm
Inductance Factor (Al):5 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):5500
Core Factor (ΣI/A) mm-1:1.39
Effective Length (le) mm:178.6
Effective Area (Ae) mm²:128.7
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:22980
Finish:Epoxy
Height:14.20mm
Length:-
Width:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
