PC47EI60-Z

PC47EI60-Z

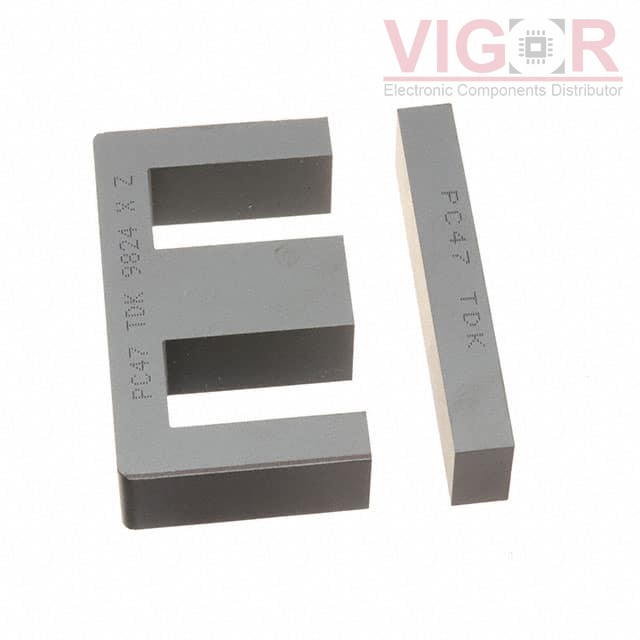

Image is for reference,
please contact us to get the real picture

Part No :

PC47EI60-Z

Manufacturer
TDK Corporation
Description
EI CORE SMPS TRANSFORMER 1 SET
Catalog
Ferrite Cores
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PC47EI60-Z PDF
Availability
0 pieces
Unit Price
$9.34000

Current price of PC47EI60-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PC47EI60-Z Specifications
Type Description
Series:E
Package:Tray
Part Status:Active
Core Type:E
Supplier Device Package:-
Material:PC47
Diameter:-
Inductance Factor (Al):5.67 µH
Tolerance:±25%
Gap:Ungapped
Effective Permeability (µe):-
Initial Permeability (µi):2500
Core Factor (ΣI/A) mm-1:0.441
Effective Length (le) mm:109
Effective Area (Ae) mm²:247
Minimum Core Cross Section (Amin) mm²:-
Effective Magnetic Volume (Ve) mm³:26900
Finish:Uncoated
Height:-
Length:2.362" (60.00mm)
Width:0.614" (15.60mm)
